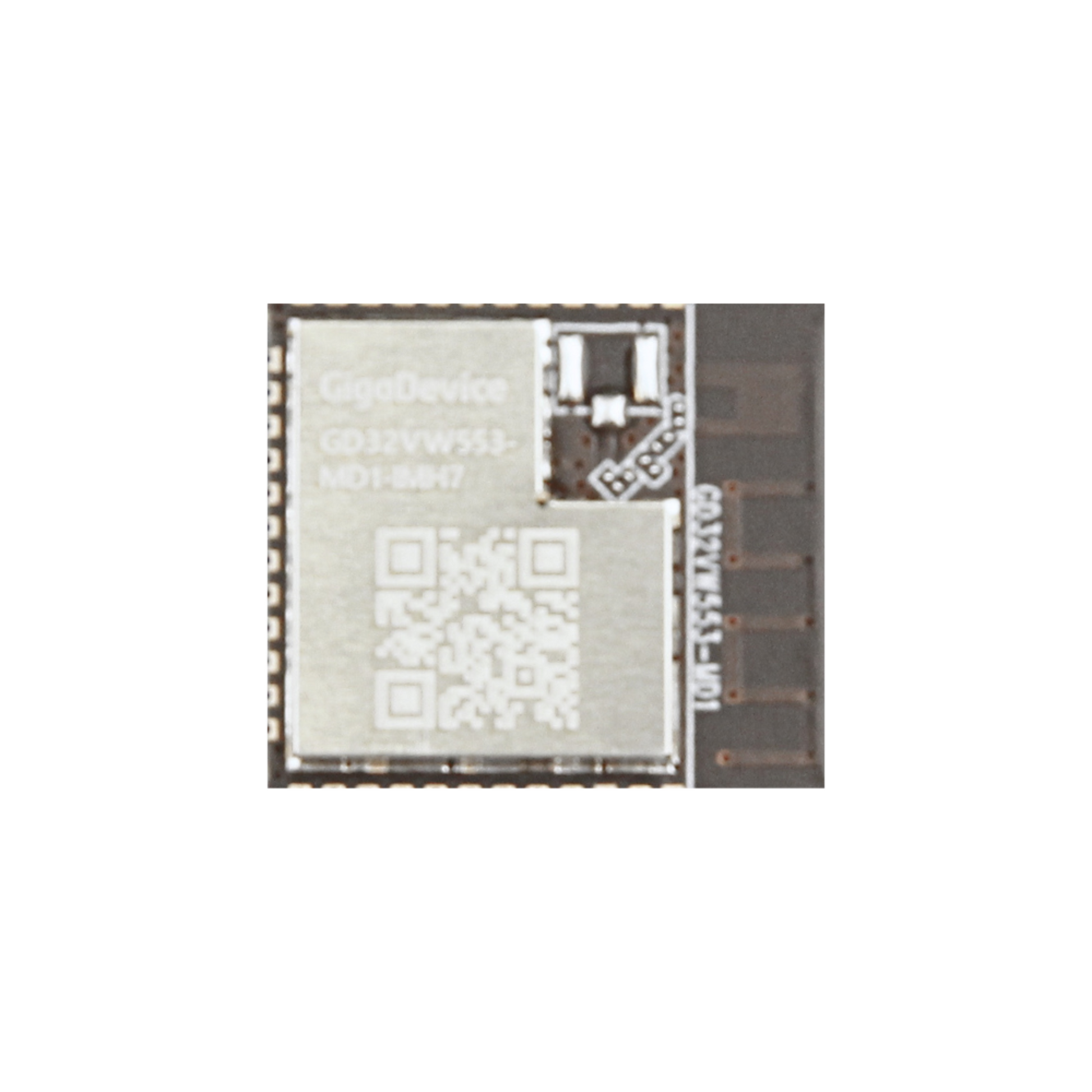

GD32VW553-MD1-IMH7
€2,20
Reliable shipping
Flexible returns
Part No: GD32VW553-MD1-IMH7
Description:
MCU model: GD32VW553-MD1-IMH7
CPU: RISC-V Core 32-bit
Speed Max: 160MHz
Flash(KB): 4096
SRAM(KB): 320
Board Features:
1. The GD32VW553-MD1 series modules are highly integrated 2.4GHz Wi-Fi and BLE modules
2. Peripheral interfaces: 28 GPIOs, support of ADC, PWM, UART, I2C, SPI, QSPI,
3. Operating voltage: 3.0V ~ 3.6V.
4. Onboard Antenna
5. The GD32VW553-MD1 series modules are highly integrated 2.4GHz Wi-Fi and BLE modules, they are optimized modules designed for a broad array of smart devices for Internet of Things (IoT) applications especially in areas such as industrial control, motor drives, user interface, power monitor and alarm systems, consumer and handheld equipment, gaming and GPS, E-bike, optical module and so on.
For more Information: Wireless Modules-GigaDevice.com
