GD-xD-W515-EVAL
€90,00
Reliable shipping
Flexible returns
Part No: GD-xD-W515-EVAL
Description:
MCU model: GD32W515PIQ6
CPU: Arm Cortex‑M33
Speed Max: 180MHz
Flash(KB): 448KB
SRAM(KB):

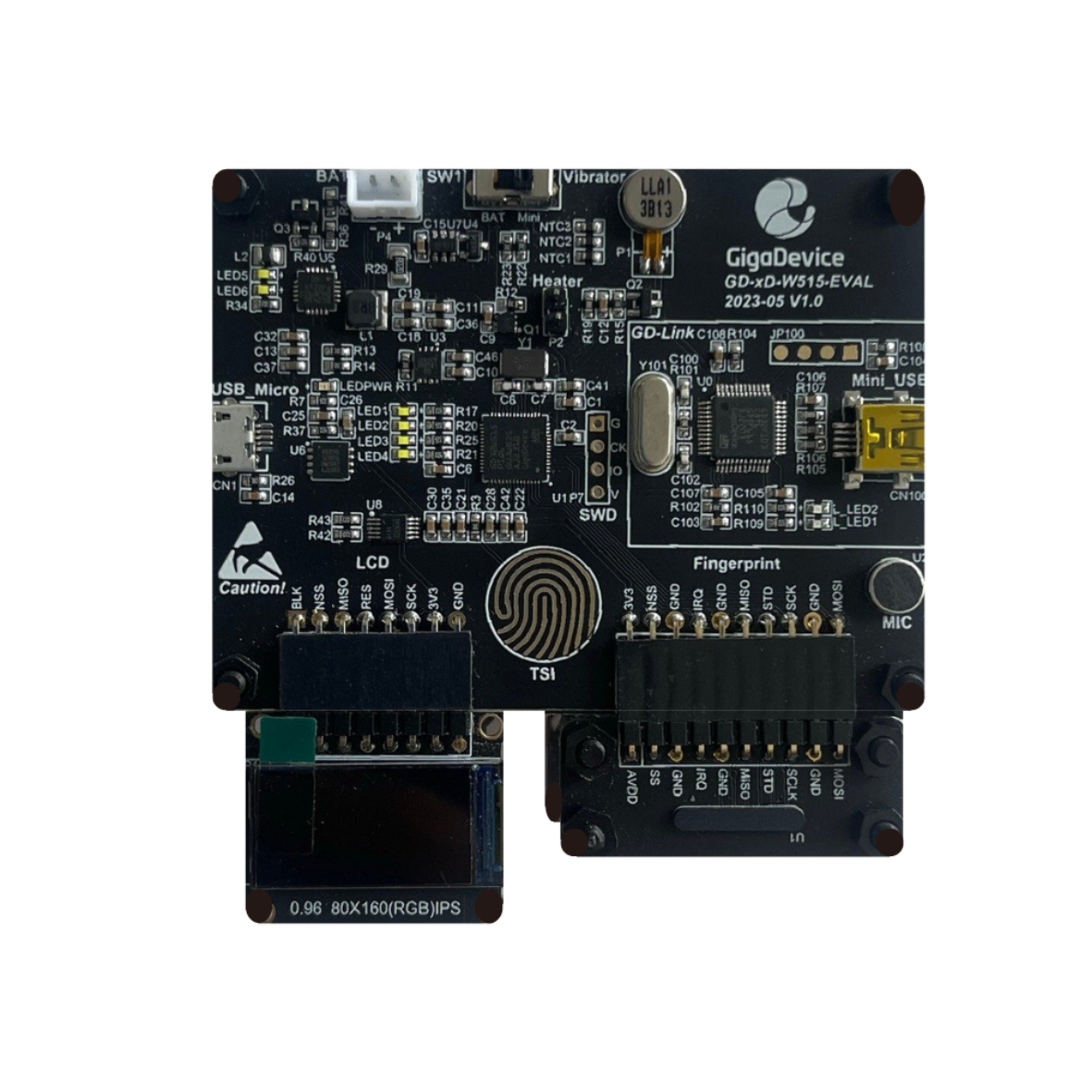

Board Features:
Capacitive fingerprint scanner, encryption support via MCU’s cryptographic acceleration unit. 0.96″ IPS LCD (160×80 resolution), multi-channel LEDs, flat vibration motor for feedback, Up to 43 GPIOs, 3x USART, 2x I2C, 2x SPI, USB 2.0 FS, I²S, others. Powered via Mini‑USB or LiPo battery; battery charging up to 1.5 A; onboard voltage/current monitoring and power estimation, Included GD‑Link debugger for on-chip programming via mini‑USB and support for serial console.
For more Information: GigaDevice GD32 MCU
