GD32E230C-START
Reliable shipping
Flexible returns
Part No: GD32C231K-START
Description:
MCU model: GD32E230C8T6
CPU: ARM Cortex-M23
Speed Max: 72 MHz
Flash(KB): 64 KB
SRAM(KB): 8 KB
Board Features:

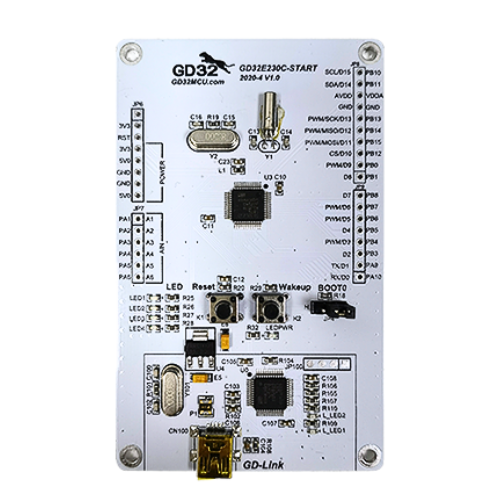

The GD32E230C-START board uses the GD32E230C8T6 MCU and is powered through a Mini USB (5V). It includes Reset, Boot, Wakeup buttons, LEDs, GD-Link debugger, and Arduino-compatible interfaces. For full details, refer to the GD32E230C-START V1.0 schematic.
To use the board, connect via Mini USB, set the correct boot mode, and the PWR LED will turn on. Programming and debugging require the on-board GD-Link.
Example projects are available for Keil (MDK-ARM) and IAR.
-
For Keil: install GigaDevice.GD32E230_DFP.1.0.0.pack
-
For IAR: install IAR_GD32E230_ADDON_1.0.0.exe
For more Information: 兆易创新GigaDevice-资料下载GigaDevice GD32 MCU
