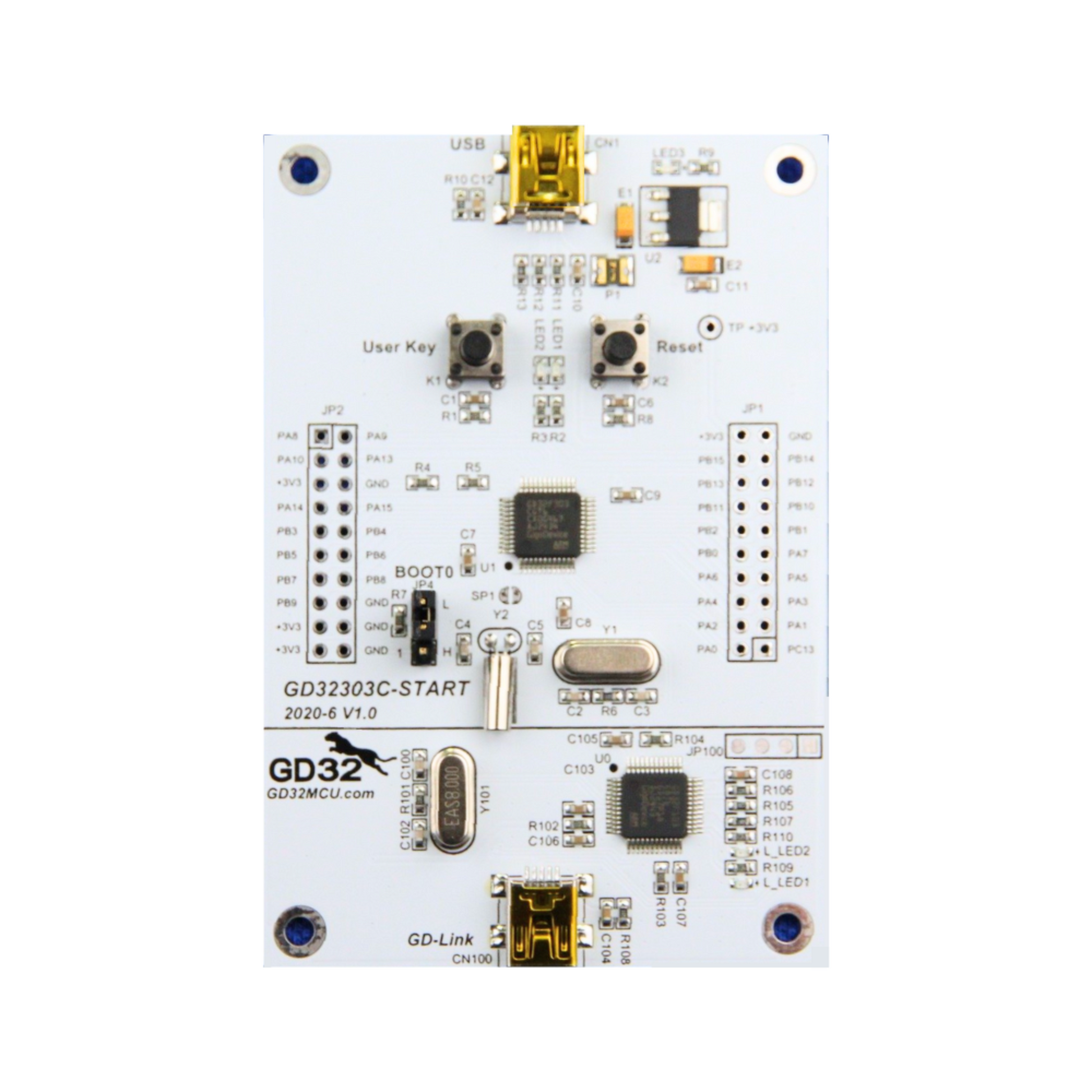

GD32303C-START
€33,00
Reliable shipping
Flexible returns
Part No: GD32303C-START
Description:
MCU model: GD32F303CGT6
CPU: ARM® Cortex™-M4
Speed Max: 120MHz
Flash(KB): 1024
SRAM(KB): 96
Board Features:
On-board GD-Link SWD debugger/programmer via Mini‑USB connector, includes RESET, BOOT, and USER buttons; multi-color LEDs for visual feedback, full access to MCU peripherals including USART, I²C, I²S, CAN, RTC, SPI, ADC, DAC, SDIO, EXMC, and CTC via headers. Support for SD card connectivity (SDIO), NAND flash, and external LCD via EXMC. Ships with Board Support Package (BSP) including example projects optimized for CrossWorks and CMSIS‑DSP frameworks.
For more Information: GigaDevice GD32 MCU
