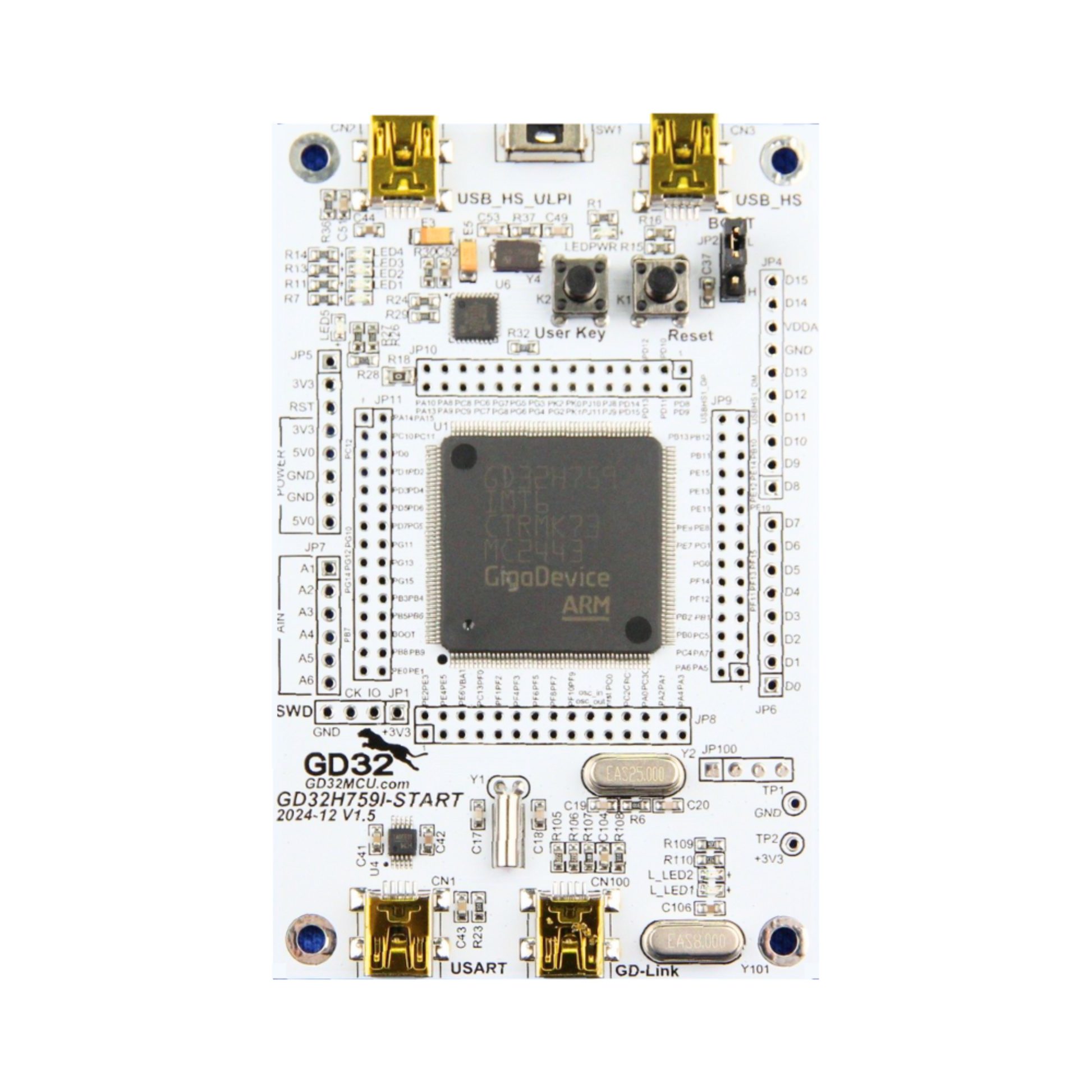

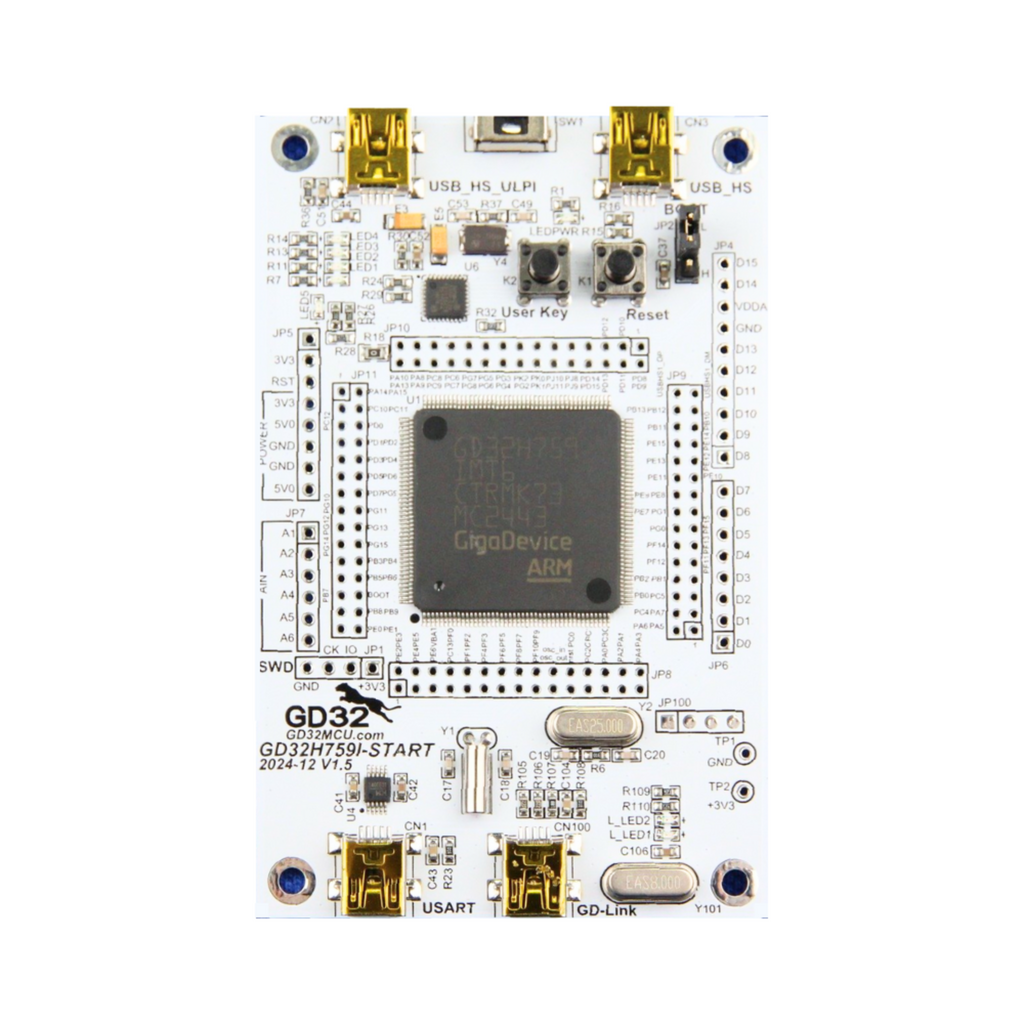

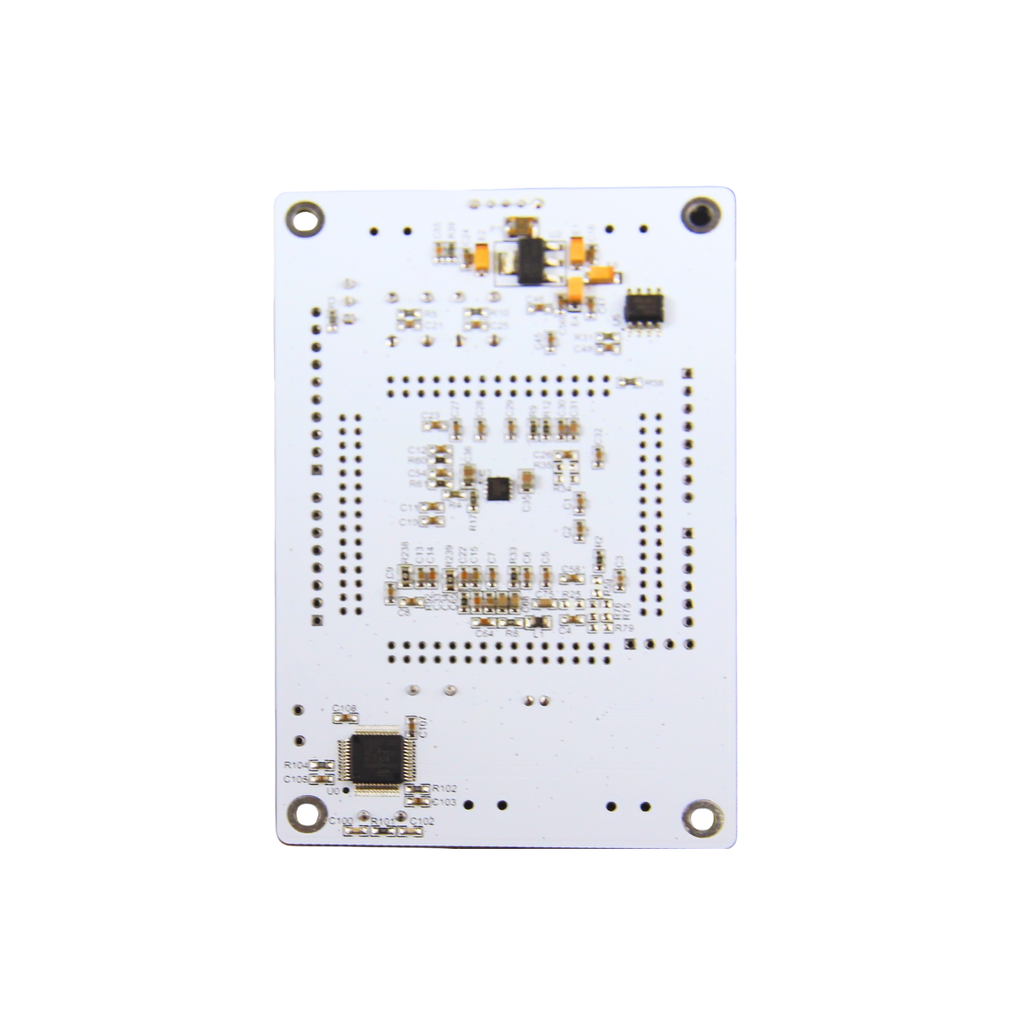

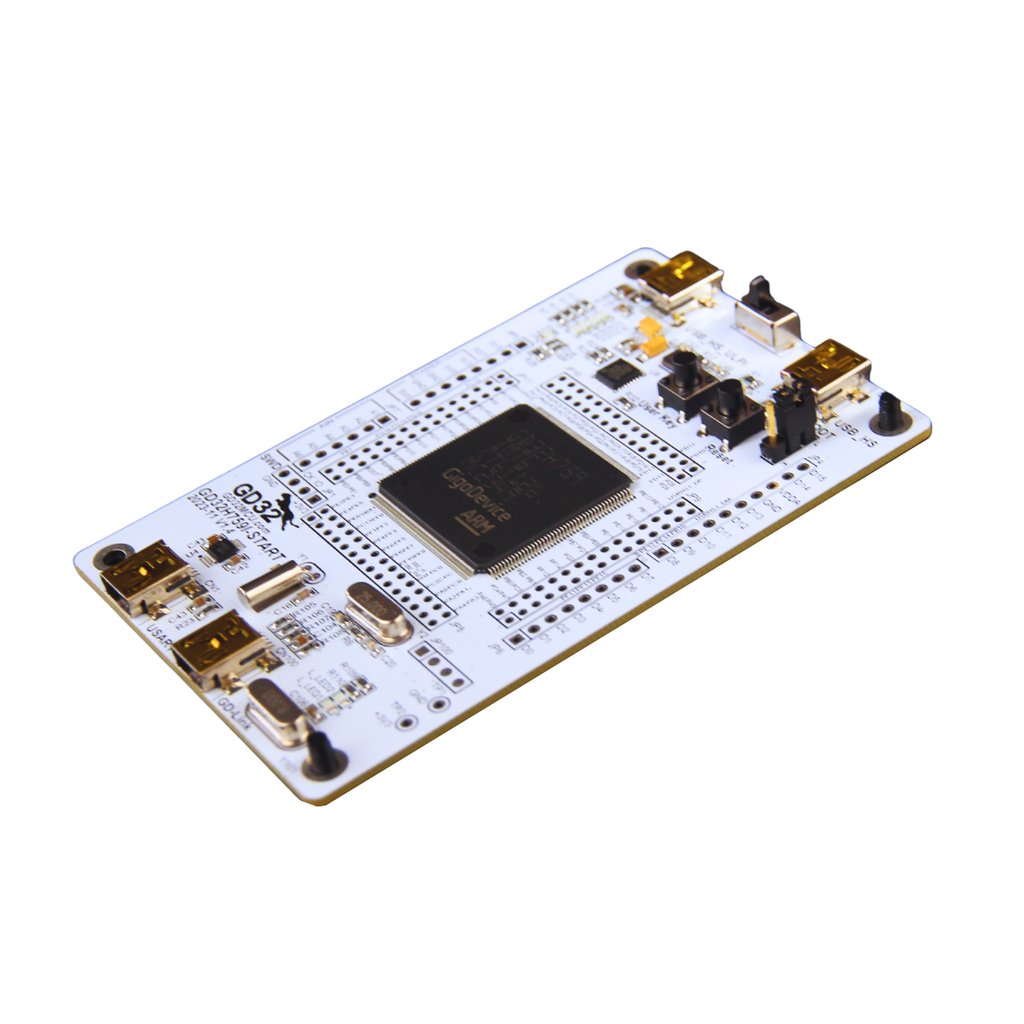

GD32H759I-START
€43,00
Reliable shipping
Flexible returns
Part No: GD32H759I-START
Description:
MCU model: GD32H759IMT6
CPU: ARM® Cortex™-M7
Speed Max: 600MHz
Flash(KB): 3840
SRAM(KB): 1024
Board Features:
1. 5V input via GD-Link Mini USB interface; onboard voltage regulation for 3.3V and core voltages.
2. Reset, Boot, K2-User KEY, LED, USB and USART to USB interface are also included.
3. Integrates CH340E for USART-to-USB conversion via PF4 and PF5.
4. Supports USBHS0 (PA9/PA10) and USBHS1 with external ULPI interface.
For more Information: GD32H759-GigaDevice.com
