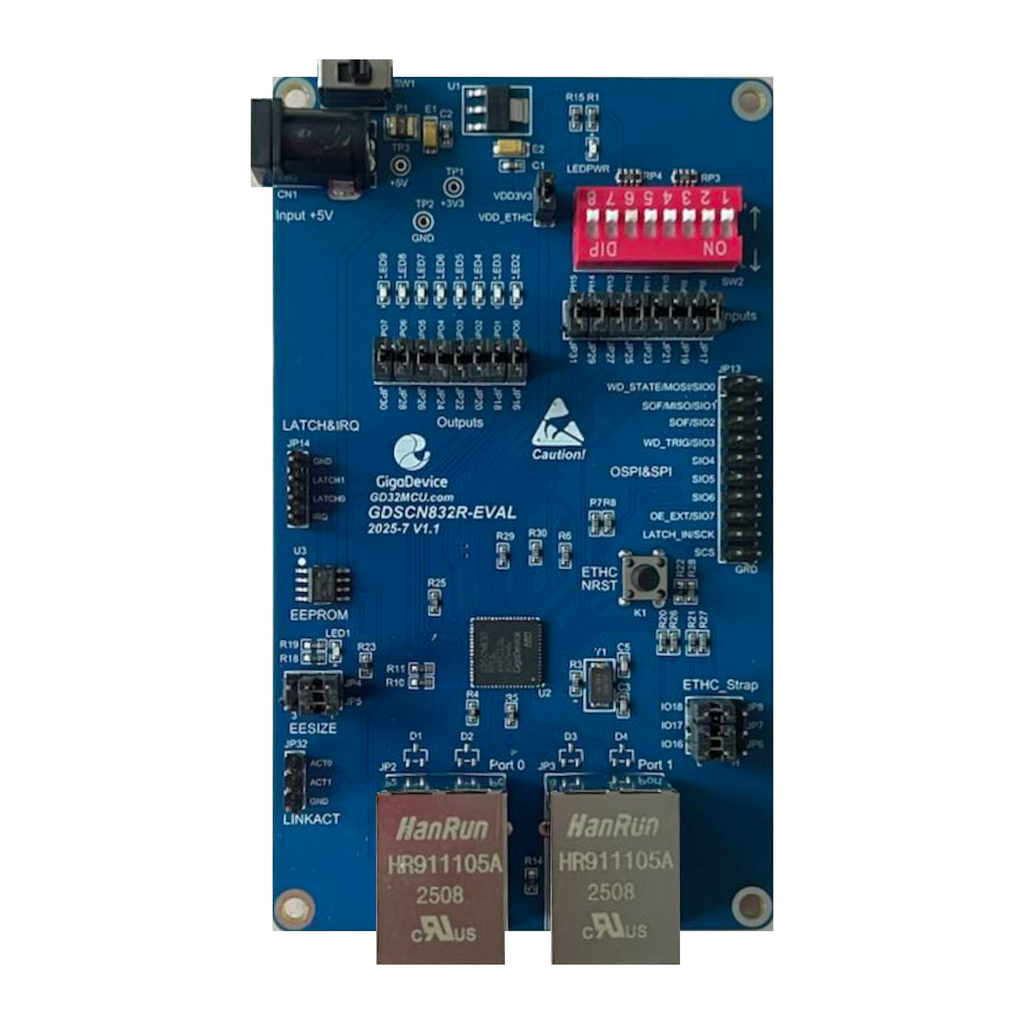

GDSCN832R-EVAL

Part No: GDSCN832R-EVAL

Description:

MCU model: GDSCN832

CPU: ARM Cortex‑M7

Speed Max:  600 MHz

Flash(KB): up to 3,84 MB

SRAM(KB): 1MB

 Board Features:

The GDSCN is a 2/3-port EtherCAT SubDevice controller featuring dual 100BASE-TX Ethernet PHY with full-duplex 100Mbps operation and HP Auto-MDIX support for both straight and crossover cables. It includes 8K PDRAM, 8 FMMUs for logical-to-physical address mapping, and 8 SyncManagers for data exchange between the EtherCAT network and local application. The device supports buffered mode for real-time updates or mailbox mode for handshake-based guaranteed data transfer without data loss.
